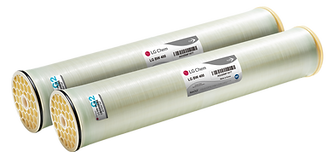

Brackish Water Reverse Osmosis (BWRO) Membranes
Superior Quality Leads to Repeat Customers
LG Chem’s NanoH2O™ brackish water RO membranes serve various municipal and industrial applications and have been operating in the major utilities around the world.
LG BWRO membranes, all incorporated with innovative Thin Film Nanocomposite (TFN) technology, are offered in industry standard configurations and can easily fit into existing and new RO plants.
Size (Diameter)
200mm - 7.9inch
Active Membrane Area
400 ft2 - 37 m2
Permeate Flow Rate
11500 gpd - 43.5 m3/d
Stabilized Salt Rejection
% 99.7
​
​
Size (Diameter)
200mm - 7.9inch
Active Membrane Area
400 ft2 - 37 m2
Permeate Flow Rate
11500 gpd - 43.5 m3/d
Stabilized Salt Rejection
% 99.8
​
Size (Diameter)
200mm - 7.9inch
Active Membrane Area
440 ft2 - 41 m2
Permeate Flow Rate
12650 gpd - 47.9 m3/d
Stabilized Salt Rejection
% 99.8
​
​
Size (Diameter)
200mm - 7.9inch
Active Membrane Area
400 ft2 - 37 m2
Permeate Flow Rate
10500 gpd - 39.7 m3/d
Stabilized Salt Rejection
% 99.7
​
​
Size (Diameter)
200mm - 7.9inch
Active Membrane Area
440 ft2 - 41 m2
Permeate Flow Rate
11500 gpd - 43.5 m3/d
Stabilized Salt Rejection
% 99.7
​
​
Size (Diameter)
200mm - 7.9inch
Active Membrane Area
400 ft2 - 37 m2
Permeate Flow Rate
10500 gpd - 39.7 m3/d
Stabilized Salt Rejection
% 99.6
​
Size (Diameter)
200mm - 7.9inch
Active Membrane Area
440 ft2 - 41 m2
Permeate Flow Rate
11550 gpd - 43.7 m3/d
Stabilized Salt Rejection
% 99.6
​
​
Size (Diameter)
200mm - 7.9inch
Active Membrane Area
400 ft2 - 37 m2
Permeate Flow Rate
10500 gpd - 39.7 m3/d
Stabilized Salt Rejection
% 99.6
​
​
Size (Diameter)
200mm - 7.9inch
Active Membrane Area
400 ft2 - 37 m2
Permeate Flow Rate
10500 gpd - 39.7 m3/d
Stabilized Salt Rejection
% 99.6
​
​
Size (Diameter)
200mm - 7.9inch
Active Membrane Area
400 ft2 - 37 m2
Permeate Flow Rate
10500 gpd - 39.7 m3/d
Stabilized Salt Rejection
% 99.6
​
Size (Diameter)
200mm - 7.9inch
Active Membrane Area
440 ft2 - 41 m2
Permeate Flow Rate
11550 gpd - 43.7 m3/d
Stabilized Salt Rejection
% 99.6
​
​
Size (Diameter)
100mm - 3.9inch
Active Membrane Area
85 ft2 - 7.9 m2
Permeate Flow Rate
2500 gpd - 9.5 m3/d
Stabilized Salt Rejection
% 99.6
​
Size (Diameter)
100mm - 3.9inch
Active Membrane Area
34 ft2 - 3.2 m2
Permeate Flow Rate
1000 gpd - 3.8 m3/d
Stabilized Salt Rejection
% 99.6
​
​
Size (Diameter)
100mm - 3.9inch
Active Membrane Area
34 ft2 - 3.2 m2
Permeate Flow Rate
1000 gpd - 3.8 m3/d
Stabilized Salt Rejection
% 99.5
​
​
Size (Diameter)
100mm - 3.9inch
Active Membrane Area
34 ft2 - 3.2 m2
Permeate Flow Rate
1000 gpd - 3.8 m3/d
Stabilized Salt Rejection
% 99.0
​
​
Size (Diameter)
60mm - 2.4inch
Active Membrane Area
22 ft2 - 2.0 m2
Permeate Flow Rate
750 gpd - 2.8 m3/d
Stabilized Salt Rejection
% 99.6
​
​
Size (Diameter)
60mm - 2.4inch
Active Membrane Area
22 ft2 - 2.0 m2
Permeate Flow Rate
750 gpd - 2.8 m3/d
Stabilized Salt Rejection
% 99.5
​
​
Size (Diameter)
60mm - 2.4inch
Active Membrane Area
22 ft2 - 2.0 m2
Permeate Flow Rate
800 gpd - 3.0 m3/d
Stabilized Salt Rejection
% 99.0
​
​
Size (Diameter)
60mm - 2.4inch
Active Membrane Area
9 ft2 - 0.9 m2
Permeate Flow Rate
345 gpd - 1.3 m3/d
Stabilized Salt Rejection
% 99.6
​
​
Size (Diameter)
60mm - 2.4inch
Active Membrane Area
9 ft2 - 0.9 m2
Permeate Flow Rate
345 gpd - 1.3 m3/d
Stabilized Salt Rejection
% 99.5
​
​
Size (Diameter)
100mm - 3.9inch
Active Membrane Area
85 ft2 - 7.9 m2
Permeate Flow Rate
2500 gpd - 9.5 m3/d
Stabilized Salt Rejection
% 99.5
​
Size (Diameter)
100mm - 3.9inch
Active Membrane Area
85 ft2 - 7.9 m2
Permeate Flow Rate
2700 gpd - 10.2 m3/d
Stabilized Salt Rejection
% 99.0
​
Size (Diameter)
60mm - 2.4inch
Active Membrane Area
9 ft2 - 0.9 m2
Permeate Flow Rate
345 gpd - 1.3 m3/d
Stabilized Salt Rejection
% 99.0
​
​
Size (Diameter)
100mm - 3.9inch
Active Membrane Area
85 ft2 - 7.9 m2
Permeate Flow Rate
2900 gpd - 11.0 m3/d
Stabilized Salt Rejection
% 99.0
​
